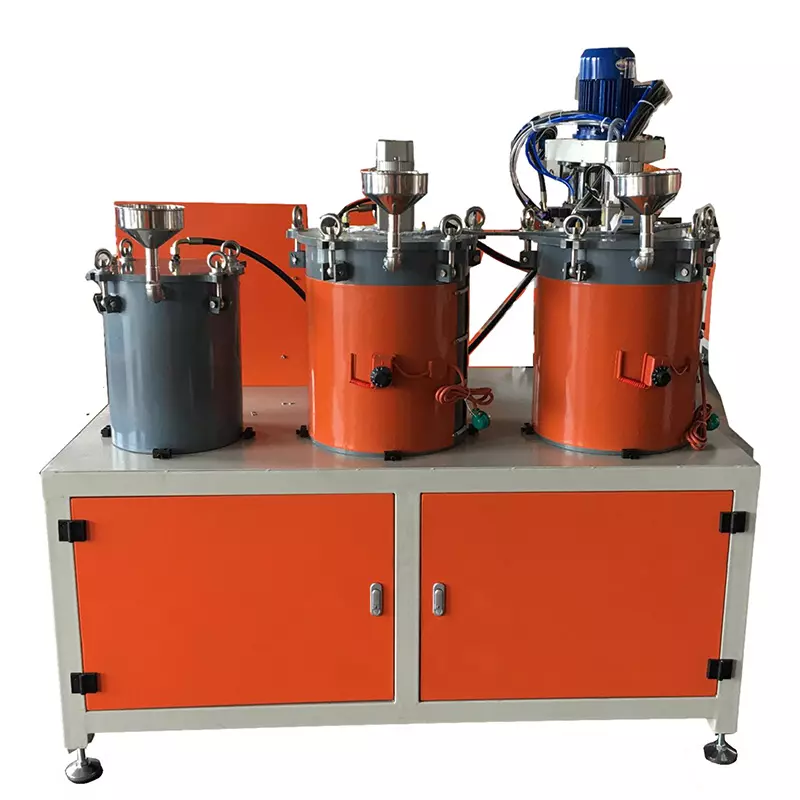

AB Gluing Machine

A B Gluing Machine

Specification

Features

1. The turning table speed and gluing speed can be adjusted freely according to the filter cap sizes. And its gluing amount is evenly and correctly.

2. This machine equips the step motor control system, which is fast speed gluing and short return time.

3. The compounds tank has the function of heat mixing, and the machine has its circulation system, to prevent the material precipitation.

4. The pipes has self temp-limited heating, to ensure the gluing amount stably.

5. The gluing head has the anti-curing alarm functions, self-test alarm functions and maintenance and repair guidance system as well.

6. Monitor and PLC control system, which is easy operation.

7. Proportional adjustable: 1:1-5:1, accuracy could be 1%

8. Mixing mode: dynamic spiral mixing

9. Mini computer volume processing

10. 1-100 set volume injection memory

11. Injection volume adjustable 1-40 grams, accuracy 1%, customizable

12. Pressure 0.3MPA, vacuum 0.1MPA,

13. Automatic alarming function, failures English display

14. Mixing glue gun, easy to maintain and self cleaning function, no leakage.

15. PLC control

16. Touch screen operation, easy to learn operation, with lock function just in case of accident modification.

17. Imported electric appliances and servo motor control, guarantee proportion and volume accuracy.

18. Material barrels with mixing and heating and temperature keeping function.

Applications

This professional designed machine is used for pouting A.B two parts on the air filter end caps.
