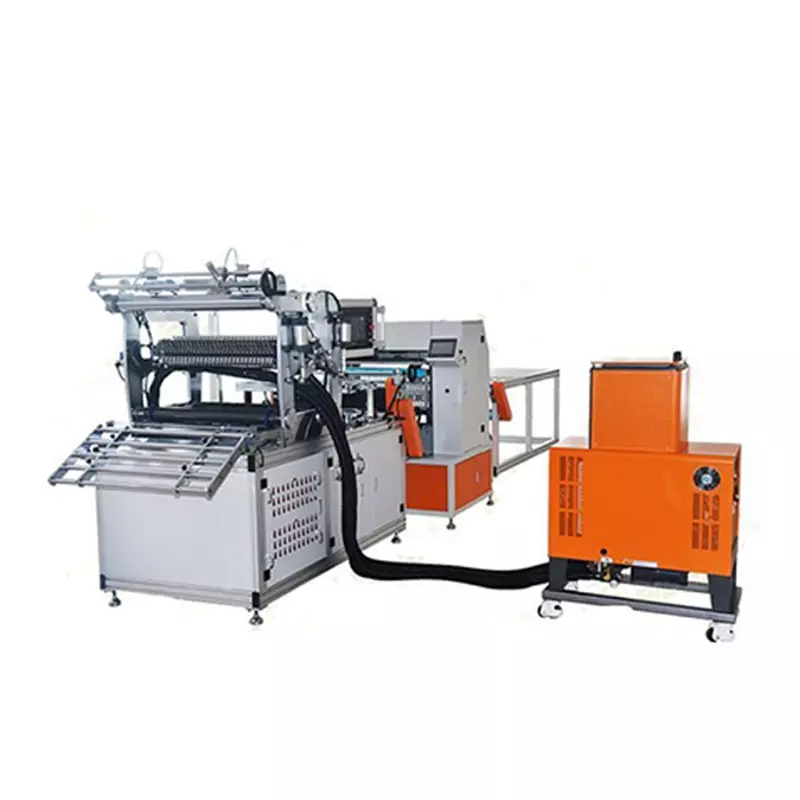

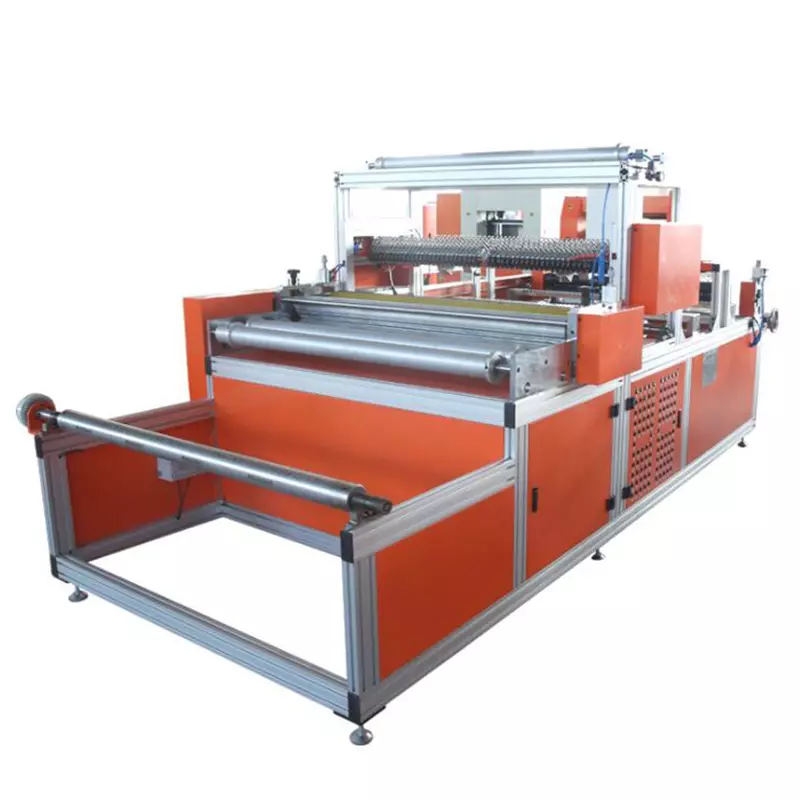

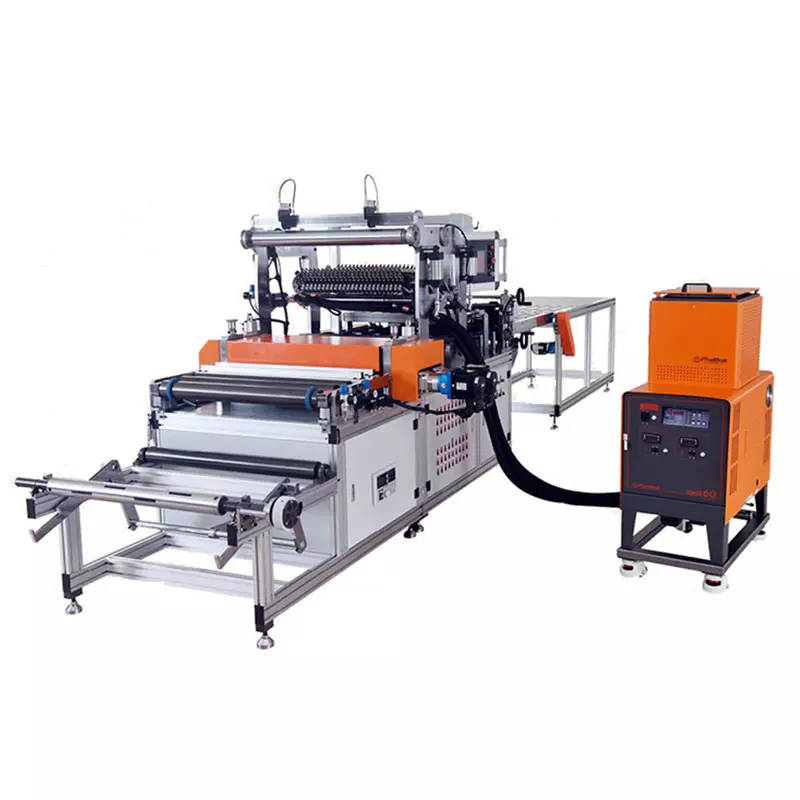

Hepa Mini Rotary Pleating and Gluing Machine

Hepa Mini Rotary Pleating and Gluing Machine

Features:

1. Perfect design and reliable components ensure the high quality and excellent performance.
2. The whole machine is automatic control of with CNC system.
3. Touch screen operation.  It’s very easy and Friendly for operator.
4. The machine is so steady that can ensure the high quality of the produced filter.

Specification:

Continuous and Intermittent hot-melt patterns available. Free adjustment of the location of the hot-melt beads during machine running.
Stop glue between pleat packs. (Can set the pleat number of the filter pack with 3~5 pleats without glue. Easy to find and cut)

Both the fiber glass pleating and hot melt dispensing on the same machine. The long conveyer belt and cooling fans are adopted after the pleating system, so to fast drying the hot melt and cut any length.
The main machine, conveyer belt and the hot melt applicator are all controlled by the PLC and monitor which is simple operation and fast speed.
The travel distance of two pleats can be adjusted among certain scopes while hot melt dispensing, which avails the dryness and humidity of the hot melt and good for firmly folded.
This machine equips the cutting and trimming device, which is used to meet different filter specifications.
This production line is stainless steel obey and aluminum frame, which is strong, nice and long life.
Six sets of the rollers circling placed on one machine, which is easily to be changed and to meet different specifications.
The hot melt melting very fast and the hot melt dispensing amount can be adjusted by the frequency converter.
High productive efficiency and good smoothness.
Furthermore, we can customize the paper-pleating production line of different specifications.
