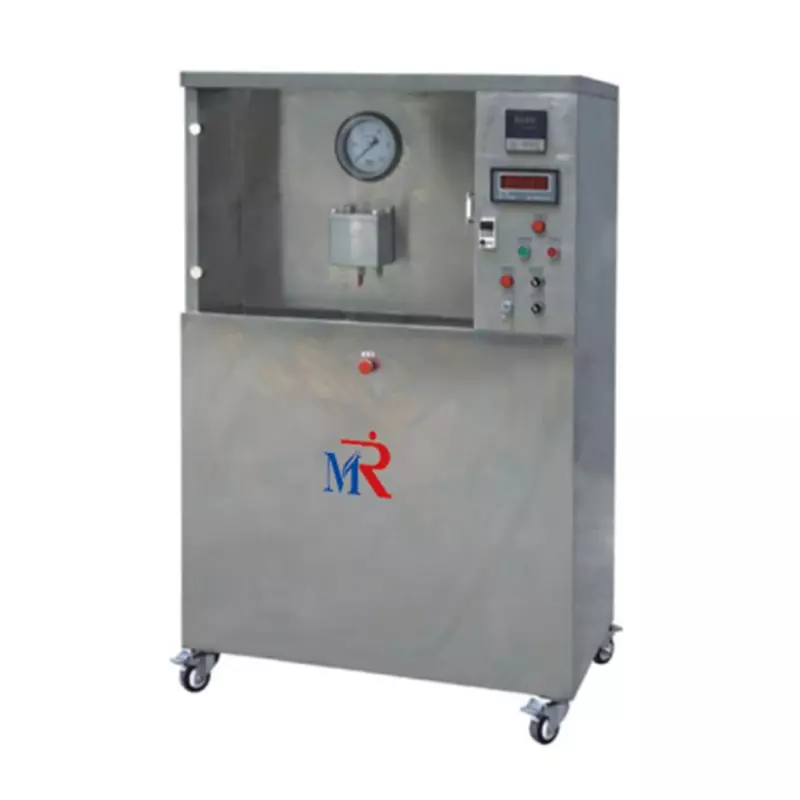

Bypass Valve Performance Tester
MOQ: 1 Pieces
Delivery time: 15 Day
Customized as needed, complete specifications, reliable quality, high hardness, strong toughness, long service life, smooth and bright surface without burrs, reliable quality. Configuration can be selected according to the actual needs of the industry. The buttons are made of high-quality materials and are easy to operate. Customization can be made according to the needs of customers
Product Details
By-Pass Valve Efficiency Tester
General description
This machine can be used to bypass valve flow characteristics, measurement, filter through sealing, opening pressure, reset performance etc..
Specification
| Test flow | 0~25L/min |
| Oil pump flow | 40L/min |
| Temperature control | normal temp.~100℃ |
| Motor power | 0.75KW |
| power supply | 220V/50Hz |
| M/C weight | 300kg |
| M/C size | 1000×600×1560mm(L×W×H) |
Features
1 The bypass circuit and double step less speed regulation system to regulate the flow and pressure test.
2 using high precision turbine flow meter to measure flow rate.
3 Using precision pressure gauge to measure pressure.
4 Test criterion: SAE HS806,ISO4548.
