Non-woven and Mesh Hotmelt Compositing Machine
MOQ: 1 Pieces
Delivery time: 15 Day
Customized as needed, complete specifications, reliable quality, high hardness, strong toughness, long service life, smooth and bright surface without burrs, reliable quality. Configuration can be selected according to the actual needs of the industry. The buttons are made of high-quality materials and are easy to operate. Customization can be made according to the needs of customers
Product Details

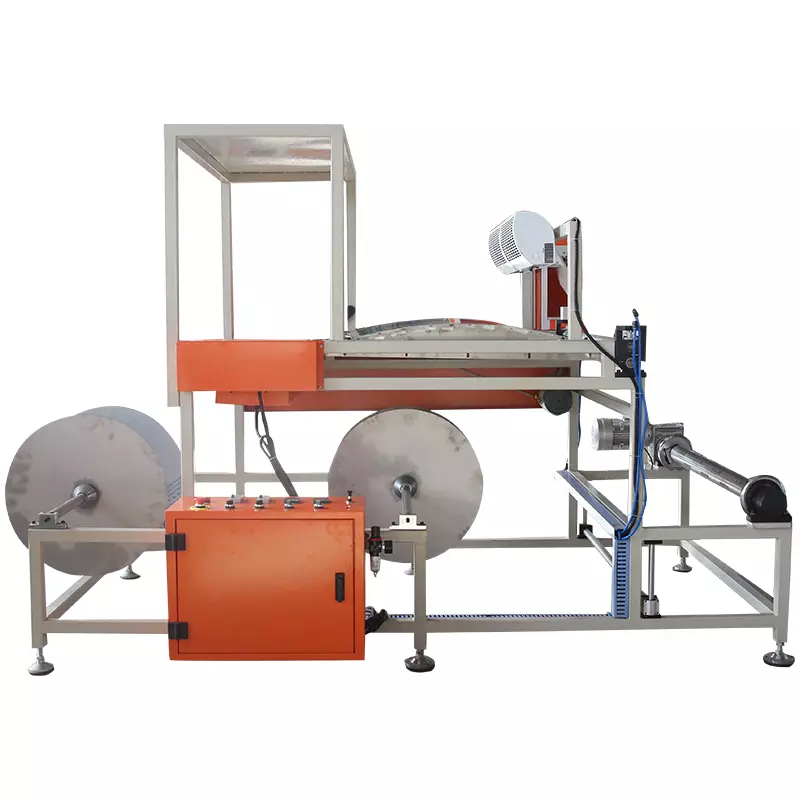

JSMRFH-1000Filter Materials Compositing Machine
| Production Capacity | 3m/min |
| Materials Width | ≤1000mm |
| Materials Coil Diameter | ≤ φ800 |
| Heating Power | 3kw |
| Motor Power | 0.75KW |
| Power Supply | 380V/50HZ |
| Working Air Pressure | 0.6Mpa |
| M/C Weight | 500KG |
| M/C Size | 4000x1000x1250 |
Features
1. Automatically finish the action of compositing iron wire together with non-woven fabric, neat and firm products got with easy operation and high efficiency.
2. Adjust working speed by frequency converter, suitable in any producing conditions.
3. The gluing temperature can be set to adjust freely.
4.This machine is specially used for bonding the non-woven fabric with mesh of the primary-medium efficiency filters by hot melt.
