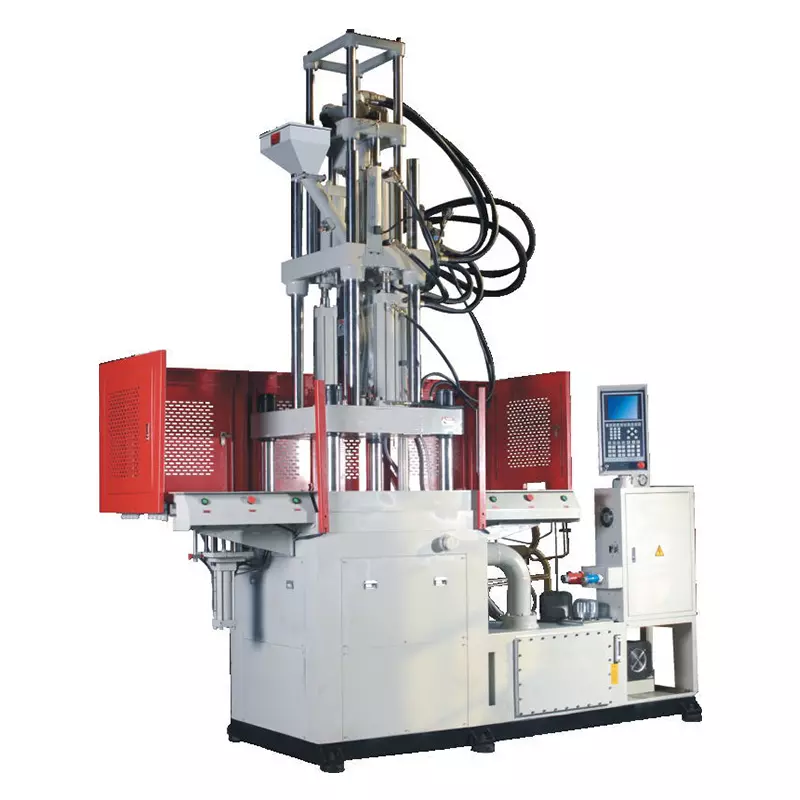

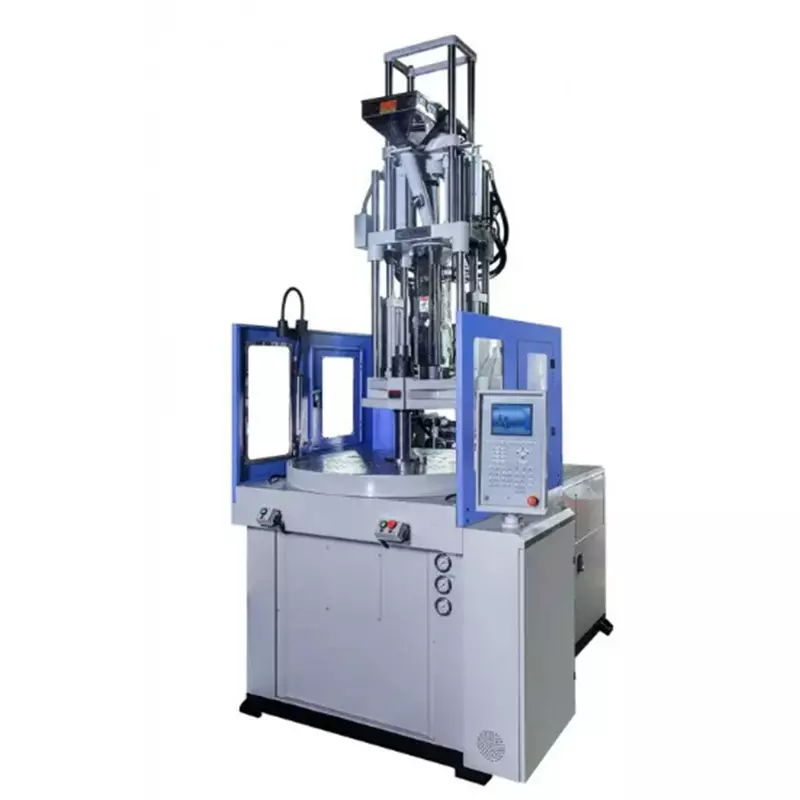

PP Injection Machine
Air Filter PP Injection Machine
|
Style |
VERTICAL |
|
injection rate (g/s) |
126 |
|
machine type |
Hydraulic |
|
weight (kg) |
1600 |
|
power (kw) |
17.2 |
|
warranty |
12 months |
|
plastic processed |
PP, PC, ABS, PET, PVC, FRPP/PVC, PPR, EVA, HDPE, MLLDPE, EPS, PA, Polystyrene, PE, LDPE, EVOH, HDPE/PP, ABS/PP, PE/PP |
|
ejector stroke |
100mm |
|
theoretical shot volume |
143cm³ |
|
screw speed |
10 - 280 rpm |
|
screw diameter |
36mm |
|
open stroke |
200mm |
|
model number |
TFV3-85R2 |
|
core components |
Bearing, motor, Pump, Gear, Pressure vessel, Screw |
|
Heater Power |
7 Kw |
|
Certification |
CE |
1. Vertical type, direct pressure mold clamping, vertical injection, small footprint, flexible and precise.
2. The lower mold is fixed and the upper mold moves. For good positioning of embedded parts, and equipped with finished product ejection device. The stress is evenly distributed. The injection pressure protection is precise and the whole stroke is smooth and excellent.
3. Electronic control and hydraulic spare parts. Precision and durability.
4. In-line screw injection device. Back pressure can be adjusted without limit. Suitable for molding precision plastic parts.
5. Suitable for injection molding and insert molding of small and medium-sized embedded parts.
6. Optional servo energy-saving motor.
