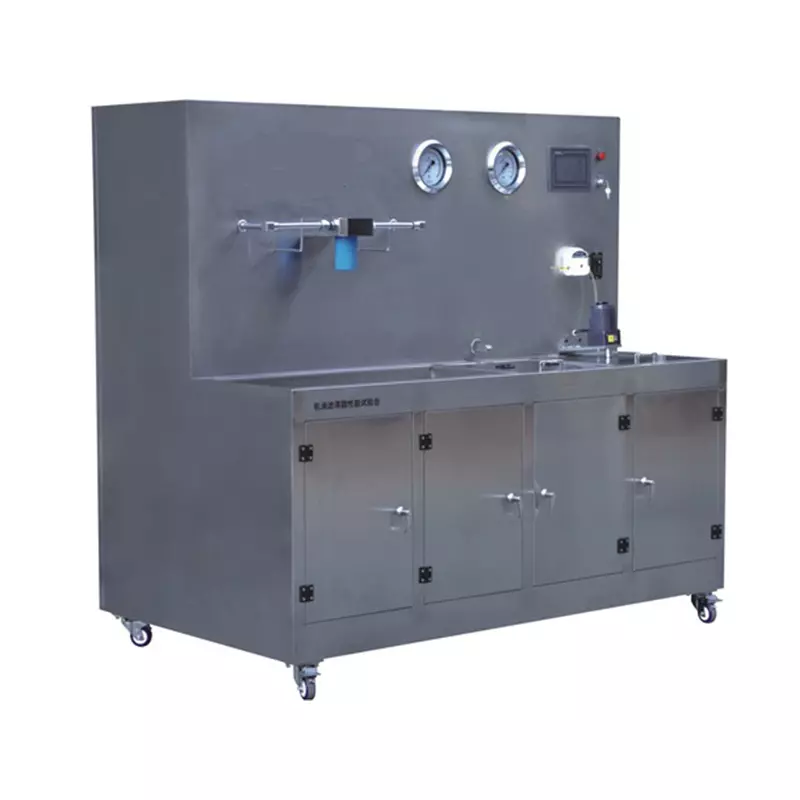

Oil Filter Performance Tester

Oil/Fuel Filter Performance Tester

Specification

Features
1.Measure test flow through high-precise ellipse gear flow meter.
2.Use precise pressure gauge to measure the pressure when oil in and out.
3.The working table uses stainless steel, and the pipelines and couplers use rust preventing material.
4.To test filter’s blocking life, impurity substance is mixed evenly with impurity affix system.
5.Test criterions: JB/T6725-93， ISO4548
Applications
1.It is used to test: differential pressure/flow properties, bypass element property, by valve response pressure, filter element blocking life, filter element high-pressure resistance loss, high-oil-temperature resistance.

2. The main test system pipelines are made of stainless steel. The pipe joints and pipeline layout avoid flow dead zones, thereby avoiding the accumulation of impurities during long-term use and ensuring the repeatability and consistency of the test bench.

3. It is mainly composed of a peristaltic pump, a bypass valve, a differential pressure sensor, a filter container, and an impurity mixer.

FAQ

What is Oil and Fuel Filter Performance Tester

1.oil filter performance tester is a device used to evaluate the performance of oil filters.

It measures several important characteristics of oil and fuel filters. For example, it can measure the filtration efficiency, which shows how well the filter can remove contaminants such as dirt, metal particles, and other impurities from the oil.

2.It also measures the pressure drop across the filter. A low - pressure drop is generally desirable as it means the oil can flow through the filter more easily without a significant loss in pressure. Additionally, it may test the dirt - holding capacity of the filter, that is, how much dirt the filter can hold before it becomes clogged and its performance is affected.

Why is it important to test oil and fuel filters with Oil and Fuel Filter Performance Tester?

It ensures filtration efficiency. Oil and fuel need to be free of contaminants such as dirt, metal shavings, and other debris. By testing the filter, you can accurately measure how well it can remove these harmful substances. For example, in an engine, even a small amount of abrasive particles in the oil can cause significant wear and tear on engine components like pistons and cylinders. A well - tested filter can prevent such damage and extend the life of the engine.
