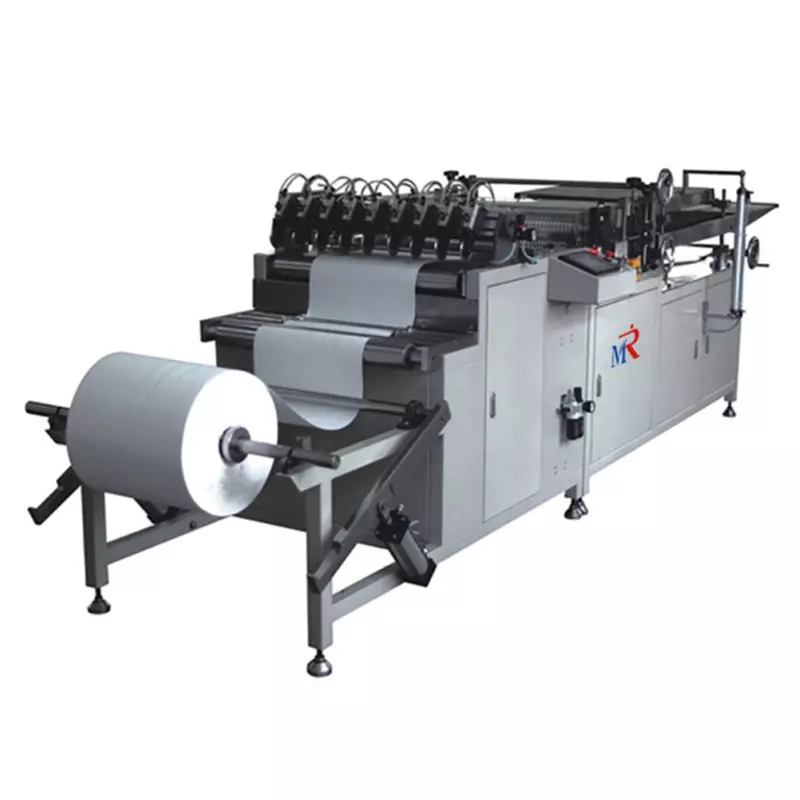

Full-auto Rotary Pleating Machine

Feature:

1. Heavy Duty Air Filter Pleating Production Line is combind byauto paper de-coiler, paper pre-slitting , pre-heating device before pleating, auto counter, water steam device, rollers marking , roller and gear collecting device, pleated paper heat forming and conveyer device.

2. The operating system of this production line adopts touch screen interface, which makes operation intuitive and simple and more convenient.

3. The working speed can be controlled by frequency converter, which can meet the needs of different situations.

4. The automatic feeding device is not only simple and convenient to operate, but also greatly reduces the manual labor of the operator. Imported cutting knife with flat face and no edge. Heating and humidifying mechanism enhances the toughness of filter paper, so that filter paper is not easily broken when roller roll marks. 5. Automatic counting, according to the filter length of the filter paper to make a good mark, making the separation of filter elements more simple and convenient.

5. The roller roll marks and drum not only work fast, but also have high dimension accuracy and no noise.

6. The wave receiving and indentation are driven by the motor, so that the receiving and indentation are carried out synchronously and the speed is very consistent.

7. The heating setting mechanism makes the shape of the filter stable and not easily deformed.
