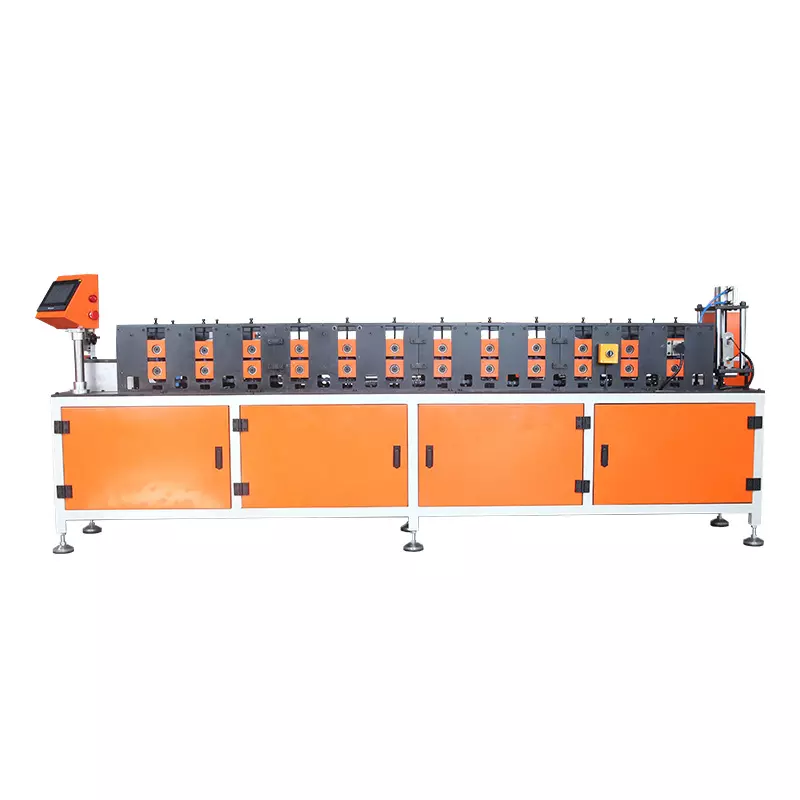

Bag Filter Galvanized Outer Frame Forming Machine

Full-auto Outer Frame Forming Machine

Function: Machine is used for making the bag filter outer frame.

Features:

1. Servo tracking cutting system.

Material of the cutting: Cr12Mov with quenched treatment. It can decide cut panel dimension according to the hydraulic drive and

PLC computer control system.

2. Material of the roller: High grade No.45 forged steel. Roller station: 12 rows Thickness of feeding material: 0.3-0.8mm

3. The gearbox transmission has smooth movement

4.Strong shock and vibration resistance

5. High transmission accuracy

6. DELTA PLC is adopted to organize all actions of the machine. The length of work piece is adjustable according to the setting of

on the PLC.

6. Two optional control modes: automatic and manual. By automatic mode, the machine can realize fully automatic working.

7. In order to make the machine has a long service life and easy maintenance; we only adopt globally famous electrical components.

And by our special designed program, the human-computer interface is very easy to be adopted by any level of operators.

8. The structure is stable, the material is strong, the appearance is beautiful, and it has the function of preventing material stripping. While ensuring the normal operation of the machine, we have combined the problems of the original machine and added a

baffle for the uncoiling part to prevent the raw material from falling off after the machine stops.
