Card Strip Pressing Machine

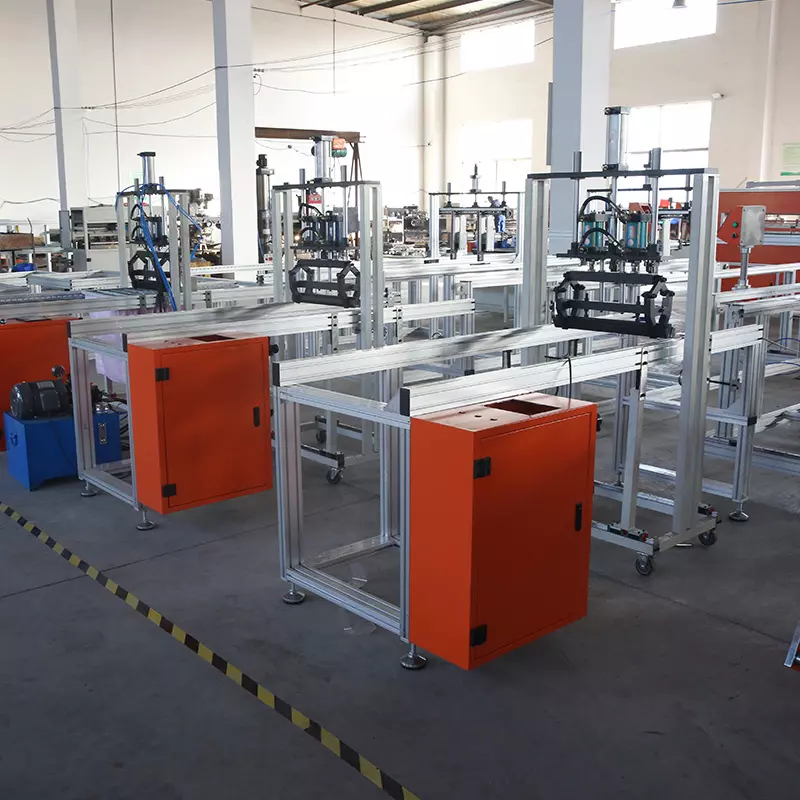

JSMRJG-500 Card Strip Pressing Machine

Function: Clamping the strips, preventing dropping, two stations independent controlling.

Feature:

1. Card Strip Pressing Machine is suitable for the processing of inner frame clamping of air cloth filter bags.

2.Card Strip Pressing Machine consists of an automatic filter bag frame conveyor, a two-way module, a clamping mechanism, and three supporting parts. Place the bag frame on the automatic conveyor, and use the stepper motor in the conveyor to accurately convey the bag frame to the position that needs to be clamped;

3.then press down on the oil cylinder to drive the lever to compress the clamping bar, and automatically send it out to the station after the compression is completed. , fully automated, and can be adjusted according to the width of the filter frame.

4.The inner frame clamping machine is the first choice for clamping the inner frame of air cloth filter bags.

5. Card Strip Pressing Machine uses electricity and compressed air as power sources.
