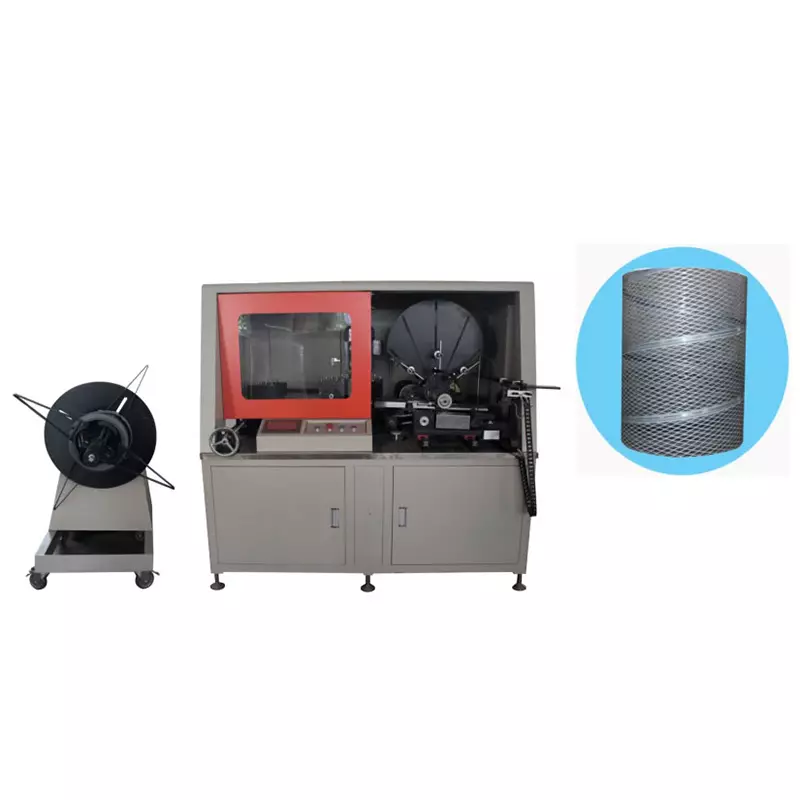

Auto Air Filter Spiral Machine with Metal Strips

Specifications:

1. Tube Diameter: φ120mm- φ420mm

2. Production Capacity: about 13m/ min

3. Tube Length: adjustable

4. Metal Strip Material: anti-fingerprint/ galvanized steel

5. Steel Strip Thickness: 0.4mm-1mm

6. Steel Strip Width: 67mm

7. Expanded Metal Width: 120mm

8. Motor Power: 4.5KW

9. Machine Power Supply: 380V/50HZ

10. Air Pressure: 0.6Mpa

11. Machine Weight: 1200KG

12. Machine Size: 1800mm*1100mm*1350mm

Features:

1. This machine is used to produce the inner and outer mesh tube for heavy duty air filters directly from metal strips to tubes.

2. The metal strip will be expanded and flattened before spiral lock-seamed process.

3. It combines the traditional expanded mesh making machine, mesh flattening machine, spot welding machine and spiral tube making machine into one unit.

4. This machine is easy operation.

5. The diameters are controlled by metal strips, no need change mould for different diameters. It will save time and cost

6. The metal tube length can be cut accordingly
