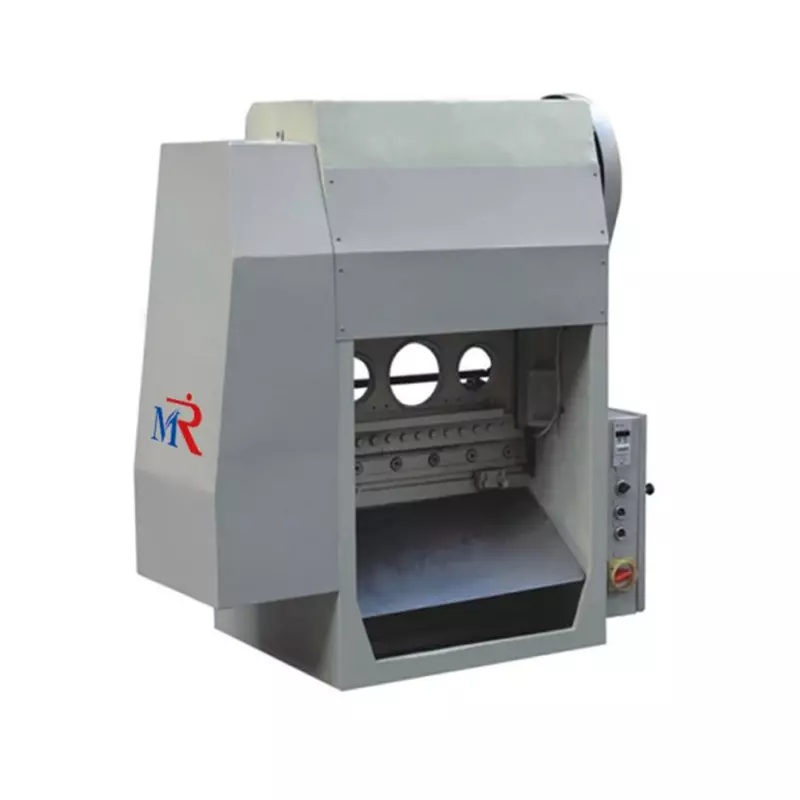

Expanded Metal Mesh Machine

Filter Mesh Expanding Machine

Specification
1.Width：≤600mm
2.Thickness of the sheets：0.3~1mm
3.Speed：200pcs/min
4.Max.transverse stroke：≤20mm
5.Max.vertical stroke：≤10mm
6.Eccentricity of shaft：12mm
7.Motor power：2.2kw
8.Power supply：380V/50Hz
9.M/C weight：700kg
10.M/C size：1090×710×1450mm(L×W×H)

Features

1. The machine is equipped with single materials feeding system, which feed correctly and easy to adjust the length.

2 .Auto-cut according to set length.

3. Different rhombus net produced by changing blades.

4. High speed drawing machine with high efficiency, steady property and easy operation.

5. This machine is used for making the inner and outer mesh of the air filter.

6. Steel metal cover for rotating wheels to ensure safety operation.

7. Alloy cutter mold can be made of Cr12#1 or YG-8 hardened tool steel, life up to one year.

8. Cast steel base and unit, shock-resistance and working smooth

9. Central lubrication system to decrease machine wearing out and make maintenance easily.

10. Pneumatic clutch brake + step motor. Pneumatic clutch brake to stop the machine.

11. Electric and pneumatic system PLC +Text screen control, easy to operate.
