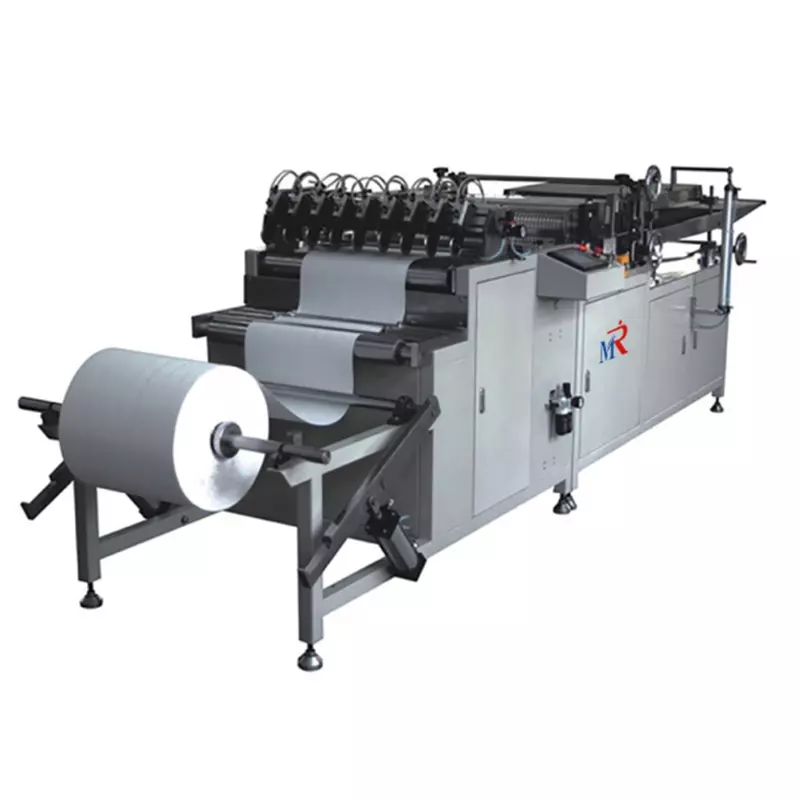

Filter Paper Rotary Pleating Machine

Consists

1. Auto Paper de-coil

2. Paper pre-slitting machine

3. Pre-heating device before pleating

4. Auto counter

5. Water steam device

6. Rollers marking machine

7. Roller and gear collecting machine

8. Pleated paper heat forming and conveyer device

1. Product capability: 0-35m/min

2. Max width: 1000mm

3. Min width: 30mm

4. Max pleat height: 60mm

5. Min pleat height: 12mm

6. Customize the rollers sizes

7. Temp. control: 0-300℃

8. Main power: 12kw

9. Working air pressure: 0.6MPA

10. Power supply: 380V/50HZ

11. M/C weight:1200kg

12. M/C dimension: 5200mm×1400mm×1170mm

Feature:

1. The pre-slitter uses pneumatic cutting round knife, which is adjusted simply and pressed evenly.

2. This machine equips the pre-heating and water steam device to prevent the paper breaking when roller marking,

3. This machine equips the gear collecting system, so to faster the pleating speed and well pleated the paper.

4. The rollers can be made with bubbled type or the pleat-lock type, which is used to maintenance the certain distance between two pleats.

5. This high automatic machine has the process of the auto counting, pleating pre-heating and forming
