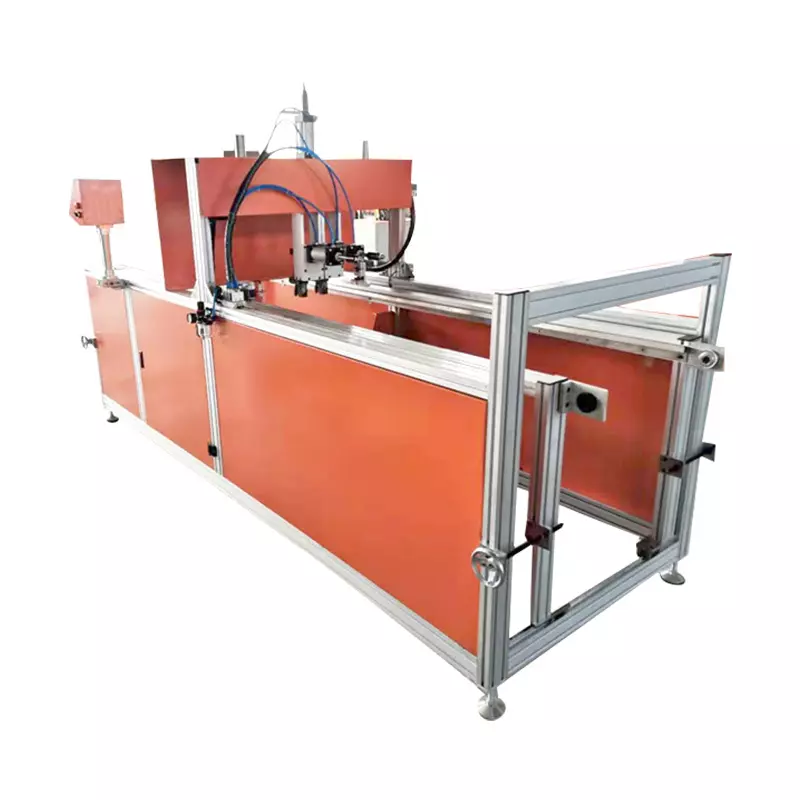

Inner Frame Clinching Machine

JSMRMJ-500 Inner Frame Riveting Machine

Function: Fixed the inner frame, two stations working, independent controlling.

Features:

1.The inner frame clamping production line is suitable for the processing of inner frame clamping of air cloth filter bags.

2.The inner frame clamping production line is composed of an automatic filter bag frame transfer device, a two-way module, a clamping mechanism, and three parts. Place the bag frame on the automatic transmission device, and accurately transmit the bag frame to the position that needs to be clamped through the stepping motor in the transmission device;

3.then press down the oil cylinder to drive the lever to compress the clip, and automatically send out the station after the compression, Fully automatic, and can also be adjusted according to the width of the filter frame. The inner frame clamping machine is the first choice for clamping the inner frame of the air cloth filter bag.

4.The inner frame clamping production line is powered by electricity and compressed air.
