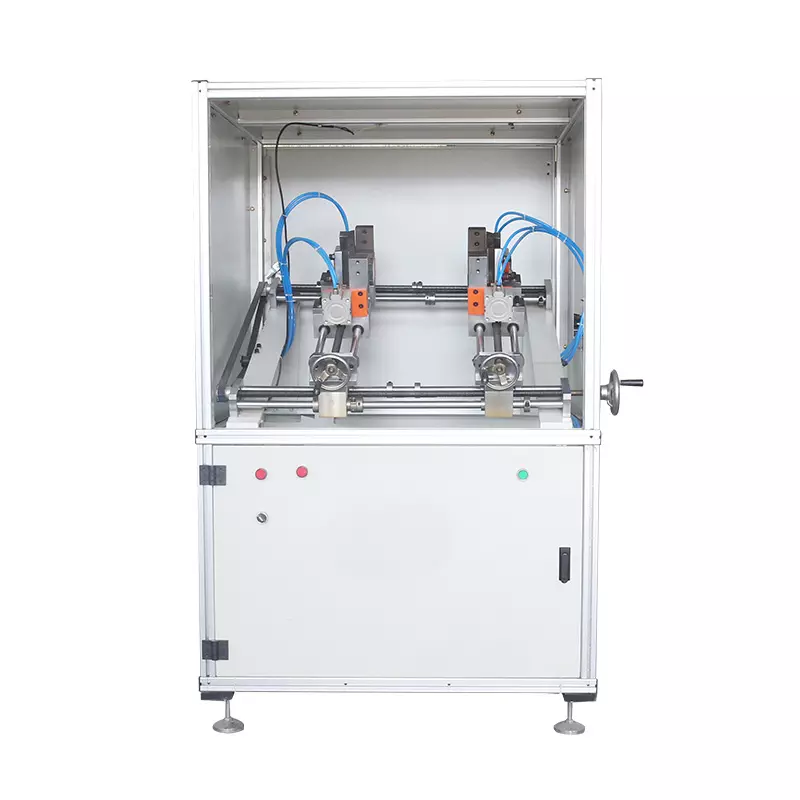

Cabin Air Filter Edge Trimming Machine

Cabin Air Filter Edge Trimming Machine

General Description
The machine is suitable for air conditioning filter two side of the clip.
Specification
1.Product capability:20pcs/min
2.The length of the work:650mm
3.Width of product:700mm
4.Working air pressure:0.6mpa
5.Power supply:220v/50Hz
6.M/C weight:200kg
7.M/C size:1030×700×1000（L×W×H）

Feature:

1. Paper cutter, suitable for clamping the inner frame of air cloth filters bags.

2. The paper cutter consists of an automatic filter bag frame conveying device, a two-way module, a clamping mechanism, and three supporting parts. Place the bag frame on the automatic conveyor.

3. Use the stepper motor in the conveyor to accurately convey the bag frame to the position that needs to be clamped; then press down on the oil cylinder to drive the lever to compress the clamping bar.

4. Automatically send it out to the station after the compression is completed. , fully automated, and can be adjusted according to the width of the filter frame.

5. The inner frame clamping machine is the first choice for clamping the inner frame of air cloth filter bags.

6. Paper cutters use electricity and compressed air as power sources.
