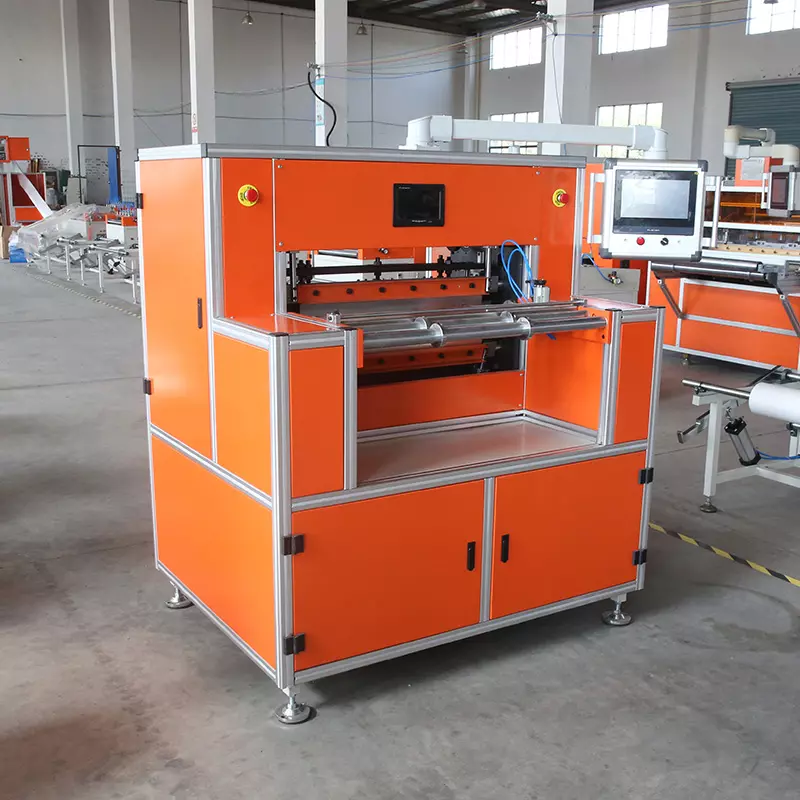

CNC Knife Pleating Machine

General description
The device is applicable to any material or multilevel material folded filter paper.
Specification
1、Max width: 700mm
2、adjustable pleating height: 3-70mm
3、Pleating speed: 0-400pleats/min
4、Power supply:380V/220V/50hz
5、Motor power:4kw
6、Preheating power:4KW
7、Heating temp:normal-300℃
8、Working air pressure:0.6Mpa
9、M/C weight: 700kg
Features
1、The folding machine adopts upper and lower knife alternatively perform folding, from the knife automatic adjustment by computer, can reach different fold higher requirements, accurate size.
2、In the paper folding machine automatic dotting counter, folding processing and preheating and forming etc.
3、This machine can also be folded all the different rules of fold change.
4、Folding knife of this machine can change any angle, ensure the folding does not damage any kind of filter material.
Applications
1.This production line is suitable for the automobile industry three, hydraulic industry, purification industry, the water treatment industry.

2. Composed of four parts: pre-cutting, printing, counting, and folding machines. The humidification mechanism can be added or removed according to customer needs.

3. The filter material is placed on the material rack, and after the pre-cutting of the slitting is set, the printer for adjusting the scratches is adjusted, and finally the folding mechanism of the folding mechanism with the folding height adjusted is adjusted and shaped to complete the folding process of the filter material.
