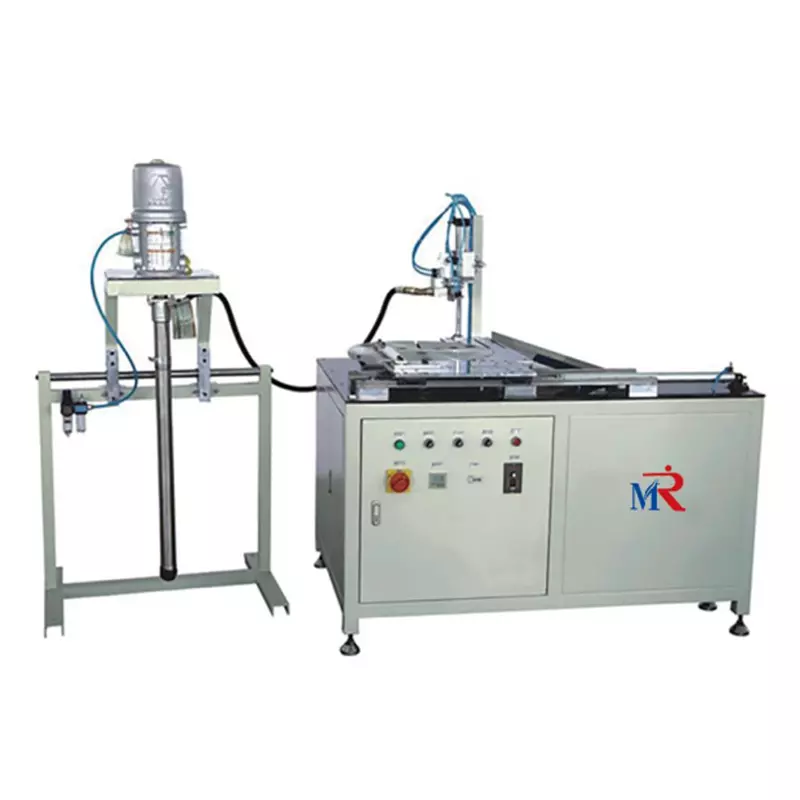

PVC Caps Gluing Machine

PVC Caps Gluing Machine

1.The outer diameter of the end cap：≤500mm
2.Gluing width：≤50mm
3.Viscidity：≤50000CP
4.Suitable adhesives：PVC filter adhesive(high temperature solidified adhesive)
5.Production capability：4pcs/min
6.Power supply：220V/50Hz
7.Main machine power：500w
8.Working air pressure：0.6MPa
9.The air pressure of the gluing pump：≤0.45MPa
10.The working pressure of the gluing head：4MPa
11.M/C weight：300kg
12.M/C size：1405×950×1300mm (L×W×H)

Features

1. This machine can glue evenly with wide using range.

2. Using the double sealing modes, to make the nozzle break off glue thoroughly after gluing.

3. The auto mover system push the glued products into the production line automatically to avoid affecting the product quality while transferring.

4. Adopts the excellent import pump, ensure gluing accurately.

Applications

This machine is applied to dispense PVC on the end caps of the heavy duty air filter.
