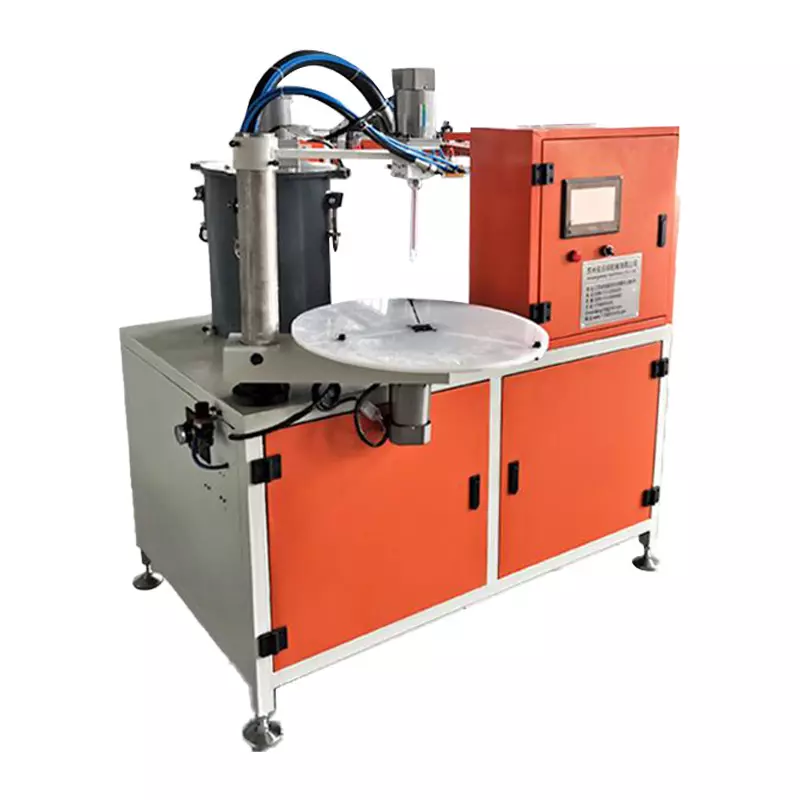

Two Components Filter Caps Gluing Machine

Filter Gluing Machine

Specification
1. Available cap diameter：≤Φ450mm
2. Tank capacity(A、B)：60L,35L
3. Gluing range/single：10g~260g
4. Gluing speed (S/time)：3~15S/time
5. Product efficiency：2pcs/min~6pcs/min
6. Mixing rate：1：6(meet customers’ specifications.)
7. Mixing head speed：≤3300 circle/min
8. Turning speed：≤280 circle/min
9. Machine power：4kw
10. Working air pressure：0.6MPa
11. Power supply：380V/50Hz
12. M/C weight：450kg
13. M/C dimension：1800×1200×1700mm (L×W×H)
Features:

1. The production line automatically loads, greatly reducing the labor degree of the operator; then the hose connects the module to complete the required product processing.

2. Close the protective cover door, reset all emergency stop buttons, close the main power switch, switch on the power control switch, power indicator light.

3. Set the width and height of required product glue.

4. The production line of AB gluing machine consists of automatic rubber loading device, rubber beating device, pump body and three supporting parts.

5. Pour A glue into A drum, pour B glue into B drum; then mix AB glue into the point glue device through pump body.

6.AB glue injection is the first choice for air cloth filter box.
