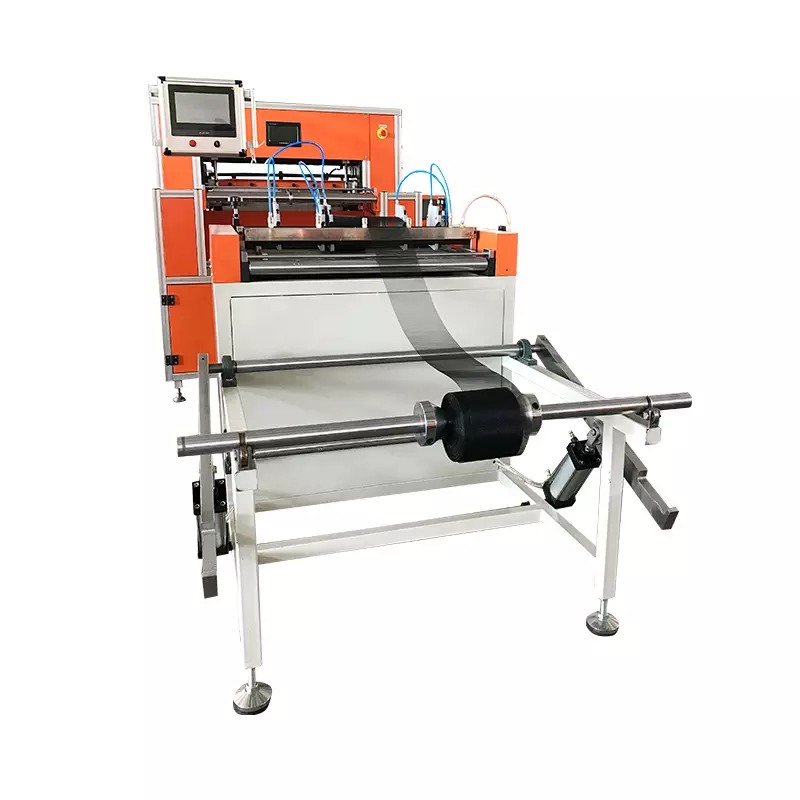

Filter Paper Knife Pleating Machinery

General description
Filter Paper CNC Knife Pleating Machine is applicable to any material or multilevel material folded filter paper.
Specification
1、Max width: 700mm
2、adjustable pleating height: 3-70mm
3、Pleating speed: 0-400pleats/min
4、Power supply:380V/220V/50hz
5、Motor power:4kw
6、Preheating power:4KW
7、Heating temp:normal-300℃
8、Working air pressure:0.6Mpa
9、M/C weight: 700kg
Features
1、The folding machine adopts upper and lower knife alternatively perform folding, from the knife automatic adjustment by computer, can reach different fold higher requirements, accurate size.
2、This machine can also be folded all the different rules of fold change.

3、In the paper folding machine automatic dotting counter, folding processing and preheating and forming etc.
4、Folding knife of this machine can change any angle, ensure the folding does not damage any kind of filter material.

Applications
1. Filter Paper CNC Knife Pleating Machine is tailored for the automotive industry, hydraulic industry, purification sector, and water treatment industry.

2. The filter material is positioned on the material rack. Following the pre-cutting setting of the slitting process, the printer for scratch adjustment is configured. Subsequently, the folding mechanism, with its adjustable folding height, is finely tuned and shaped to finalize the folding process of the filter material.

3. Filter Paper CNC Knife Pleating Machine comprises three key components: pre-cutting, counting, and folding machines. The humidification mechanism can be incorporated or omitted based on customer requirements.
