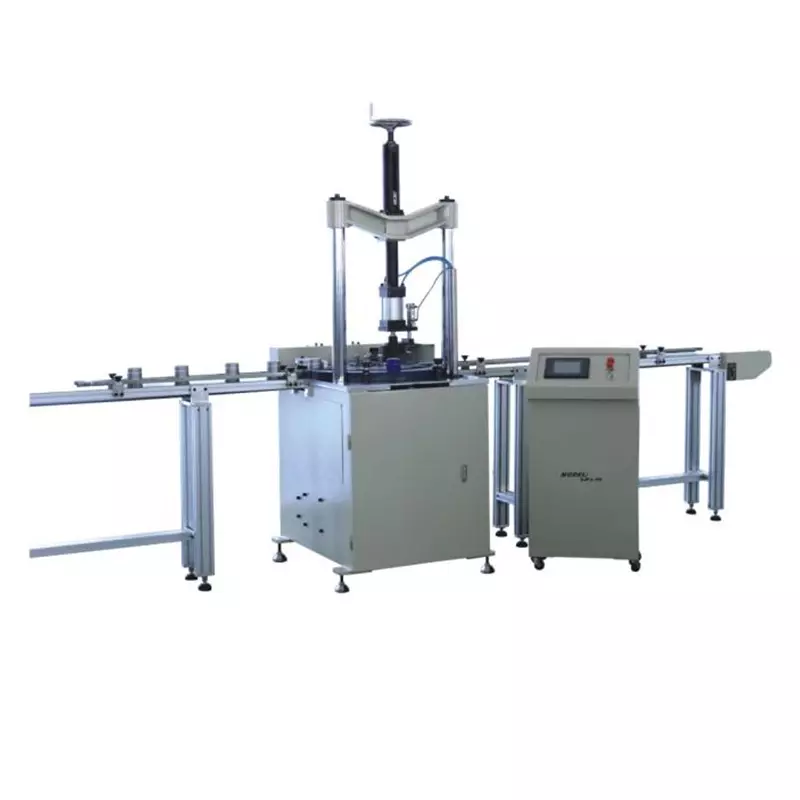

Full-auto Spin-on Oil Filter Seaming Machine

Full-auto High Speed Turntable Seaming Machine

Specification

1. Product capability:35~45cans/min

2. Seaming diameter:Φ56~110mm

3. Filter assemble height:50~270mm

4. Steel thickness range:0.5~0.8mm

5. Turntable deciles:12

6. Motor power:5kw

7. Working air pressure: 0.6Mpa

8. Power supply:380v/50Hz

9. M/C weight:600kg

10. M/C dimension:1100*800*2100mm(L*W*H)

11. Conveyer belt length:left3000mm,right2000mm

Feature

1. Electric and pneumatic controls are used by the seaming machine. The feed movement is carried out for the first roller and second roller by two sets of cam mechanics.

2. Loading and unloading of the processing port will be done by the pneumatic parts that are controlled by the pre-determined program.

3. The sealing wheel uses cre12mov of high as-quenched hardness and fine wear resistance to lengthen the service life.

4. This machine adopts the high precise import divider to ensure the seaming quality.

5. This is high speed seaming machine, has the completely automatically circulation of the up-loading, seaming and down-loading.
