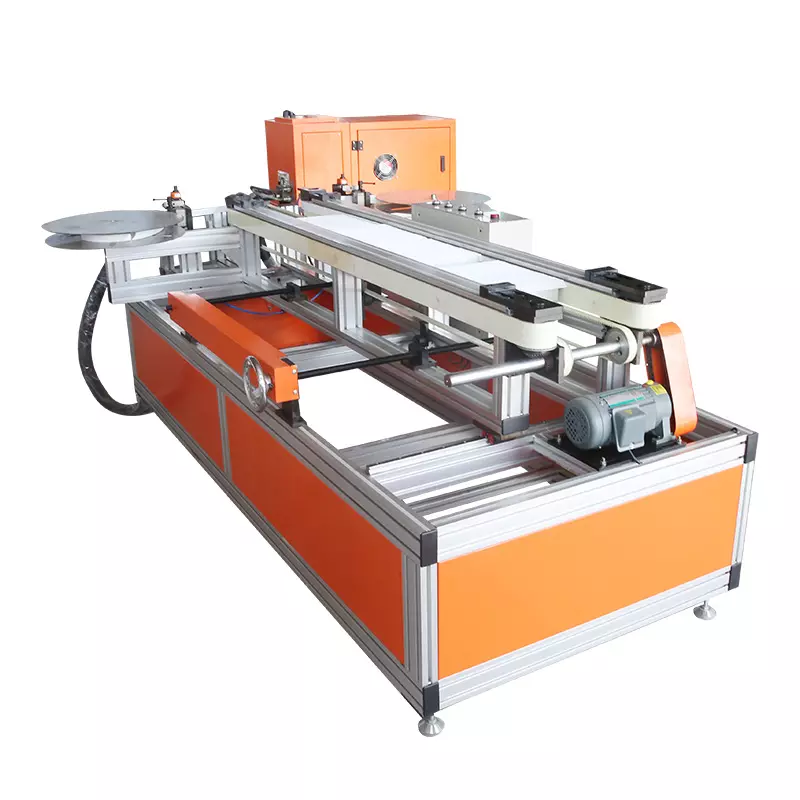

Full-automatic Strips Bonding Machine

Full-automatic Strips Bonding Machine

Specifications:

1. The height of the glue injection head is finely adjusted by the handle (with scale display).

2. The glue injection width is adjusted by the handle, and the adjustment range is 10-50mm (with scale display).

3. The glue injection thickness can be adjusted by the equipment speed, glue amount, and the distance of the glue head from the axis. 4. The fine adjustment mechanism for lifting and lowering the side strip plate can adjust the center position of the side strip and the filter element.

5. The friction tension mechanism can effectively ensure the tightness of the edge strip material disc.

6. The edge strip correction mechanism can be fine-tuned to ensure that the position of the edge strip is stable in a line.

A- Side

1. The operator loads the products one by one on the shaping mold and places them on the conveyor belt.

2. Place the mold on the conveyor line, and the product will automatically correct the flow welt

3. The product welt is automatically cut and trimmed;

4. The separated products automatically enter the demoulding mechanism;

5. The mold returns to the working platform through the elevator return conveyor line;

6. Automatically fine-cut the product after demoulding;

7. The conveyor line is waiting for collection.

B-Side

1. The operator places the products closely on the short side one by one;

2.The equipment automatically divides the products into glue-making-slices-welding;

3. The rough cutting mechanism separates the products one by one;

4. The precision cutting mechanism precisely cuts the product:;

5. The conveyor line is to be collected-inspected;
