Full-auto Turntable Bottom Plate Welding Machine

MOQ: 1 Pieces

Delivery time: 15 Day

Customized as needed, complete specifications, reliable quality, high hardness, strong toughness, long service life, smooth and bright surface without burrs, reliable quality. Configuration can be selected according to the actual needs of the industry. The buttons are made of high-quality materials and are easy to operate. Customization can be made according to the needs of customers

Product Details

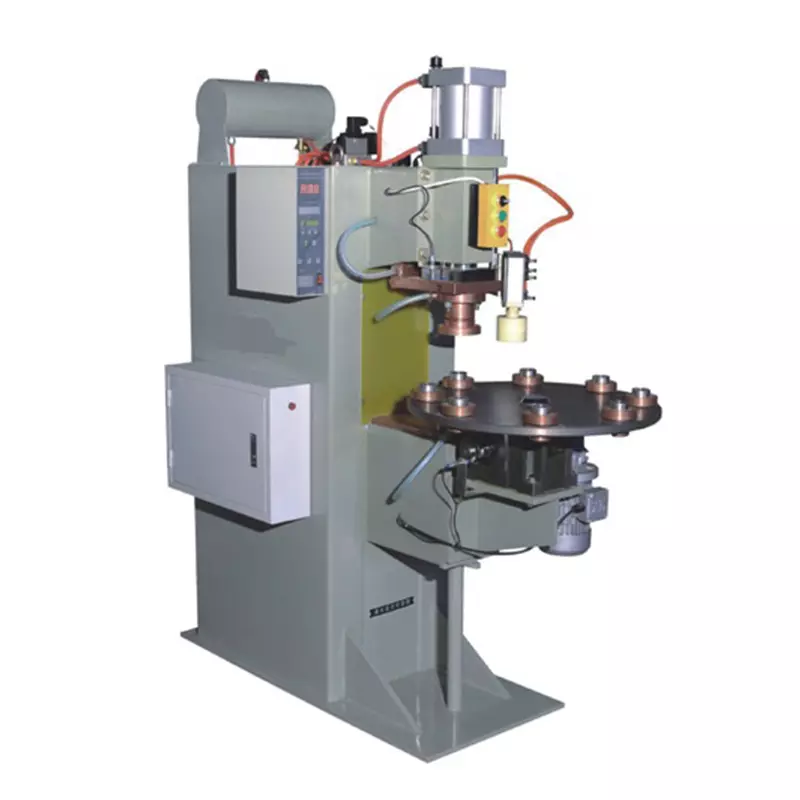

TN-200-8 Full-auto Turntable Bottom Plate Welding Machine

I. Specification

1.Rated Capacity：100KVA( adjustable)

2.Rated Primary Voltage：380V/50Hz

3.Working Station：8

4.Air Pressure：0.4MPa

5.Working Speed ：10-40pcs/min( adjustable)

6.M/C Weight：800kg

7.M/C Weight：1150X650X1900mm

II. Feature

The machine with auto laying-off function is operated by turntable segmentation easily and fast. Pneumatic pressing welding by heating welding current to reach the spot welding, fast speed, high-efficiency, stable welding quality. The upper electrode is adjustable. Welding controller with pressurizing, maintenance, pause, power up four functions. Machine also with cooling system.
