Full-auto Spiral Tube Making Machinery

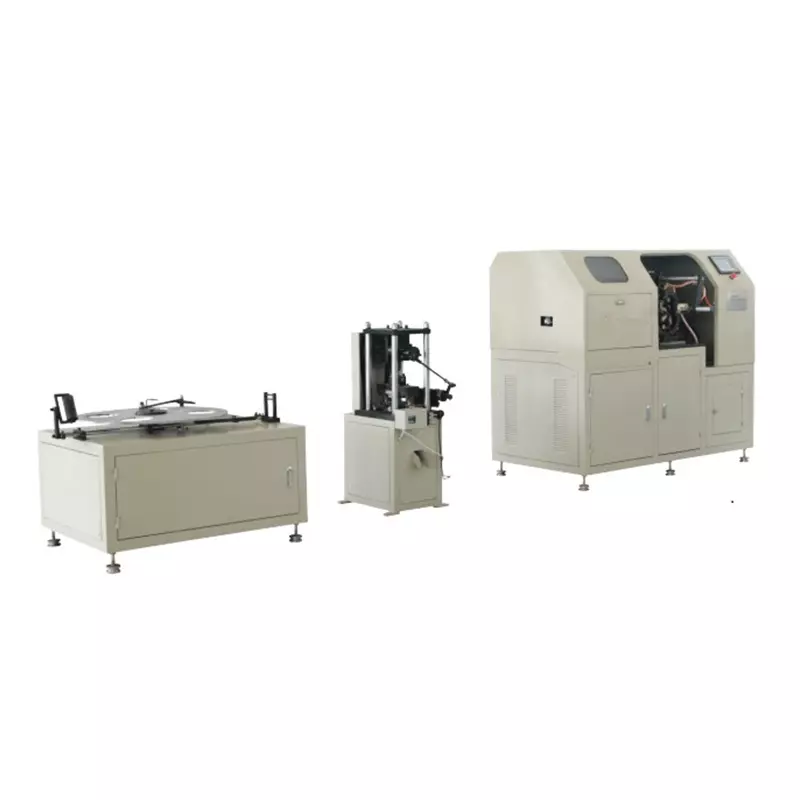

Full-auto Spiral Center Tube Making Machine

I. Specification

1. Product capacity 20-35pc/min

2. Diameter of center tube: ￠60-￠250mm

3. Length of center to be processed: freely

4. Steel-plate thickness: 0.25-0.8mm

5. Motor power: 3kw

6. Power supply: 415V/50HZ

7. Working air pressure: 0.6Mpa

8. M/C weight: 800KG

9. M/C size: 1600 × 800 × 1240mm (L × W × H)

II. Features

1. The machine can easily change the diameter of screw tube in a short time.

2. Cut the needed length according to what the customers’ specification

3. Clutch can be adjusted according to different thickness of the steel strip.

4.  The computer control machine can save production costs and working procedures with its high efficiency, steady quality and economical materials.

5. Adopts hydraulic pressure drive which has strong power and good stability.

6. perforated machine 600x600x1200 weight  200Kg
